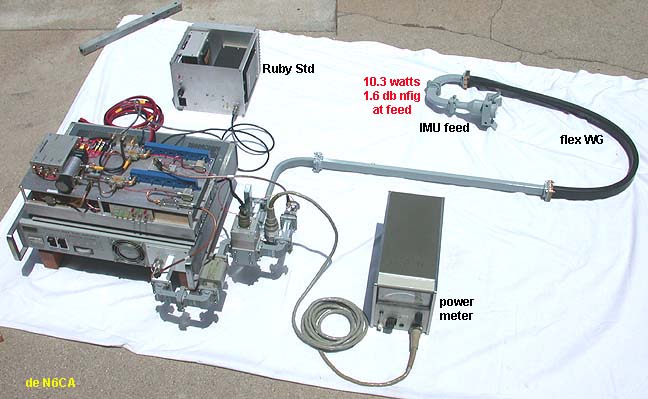

complete system including the waveguide to get out
the hole in the bldg and to the dish mounted just on the other side
of the wall.KH6HME X-band system construction pictures May 2004.
More pictures will available when the system is installed in Hawaii.
Measured specs: 10.3 watts & 1.6 db Noise figure at the feed of the 48 inch Prodelin offset fed Ku band dish, 40 dbi gain.
Final pictures before shipping to Paul:
complete system including the waveguide to get out

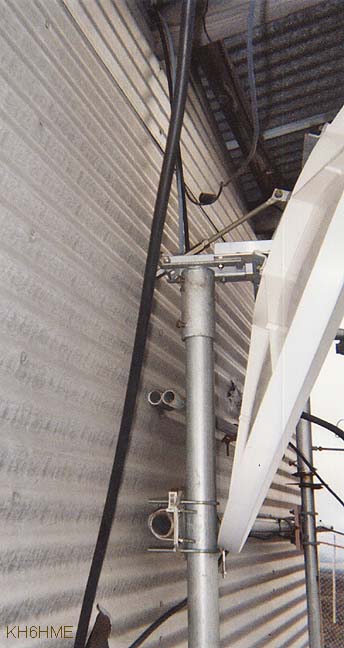

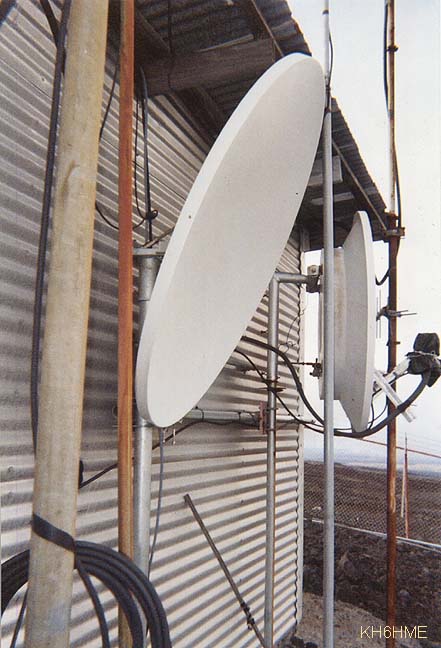

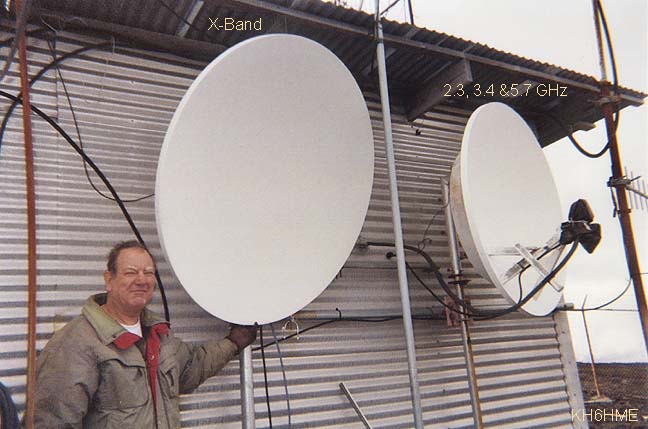

the hole in the bldg and to the dish mounted just on the other side
of the wall.

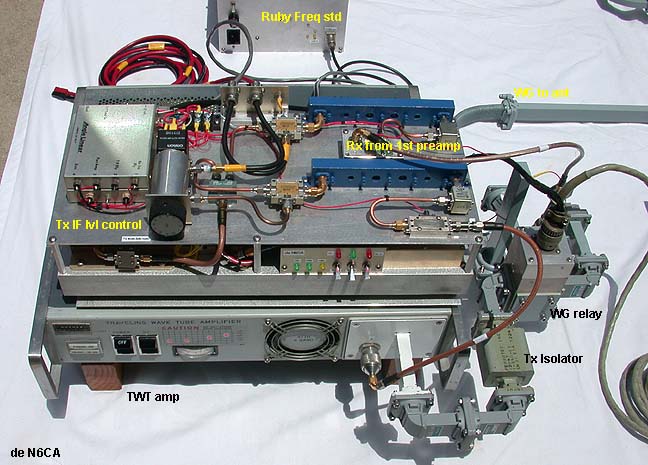

The xvtr and TWT amplifier with the WG relay, power
meter and first preamplifier

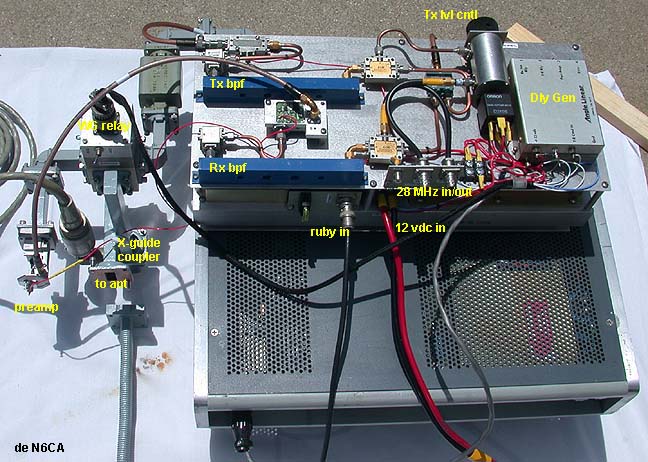

Rear view of the transverter.
Feed mounting & sun noise setup
DC-DC converter & Local Oscillator Aug 1, 2004
